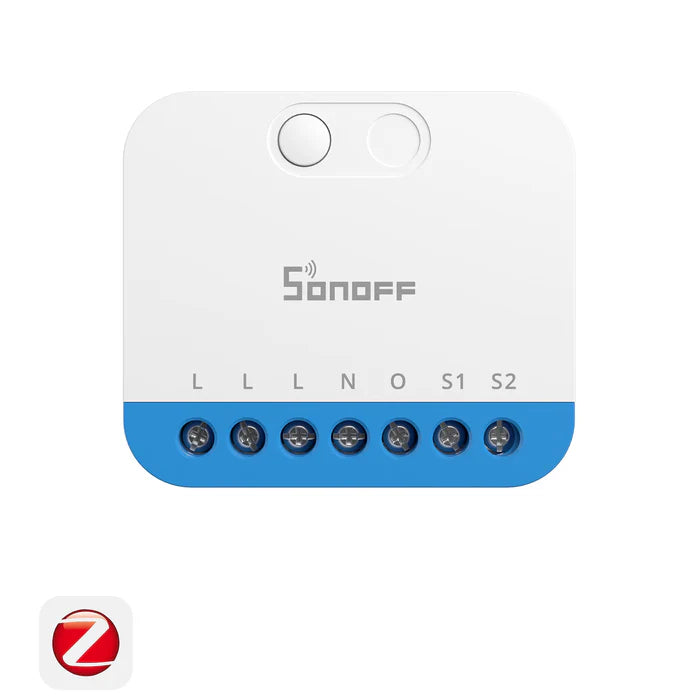

The SONOFF MINI-ZBDIM is an ultra-compact Zigbee 3.0 smart dimmer module designed to transform traditional lighting circuits into intelligent smart lighting systems. Supporting smooth flicker-free dimming, real-time power monitoring, and advanced smart automation, the MINI-ZBDIM is ideal for modern homes, offices, hotels, and smart building installations.
Designed to fit neatly behind existing wall switches, the MINI-ZBDIM allows users to remotely control and dim compatible lights via smartphone apps, voice assistants, schedules, and automation scenes while maintaining normal manual wall switch operation.

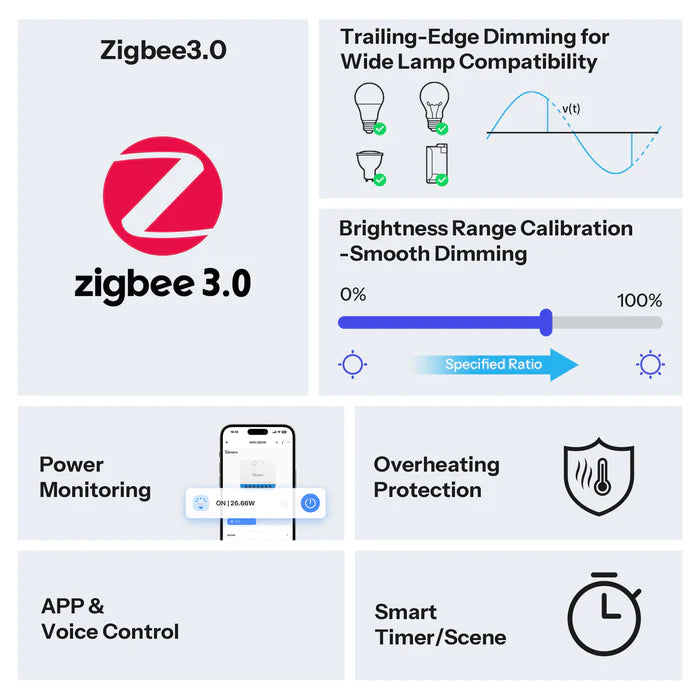

Features:
- Zigbee 3.0 Smart Dimmer Module
- Smooth Flicker-Free Dimming
- Brightness Control from 1%–100%

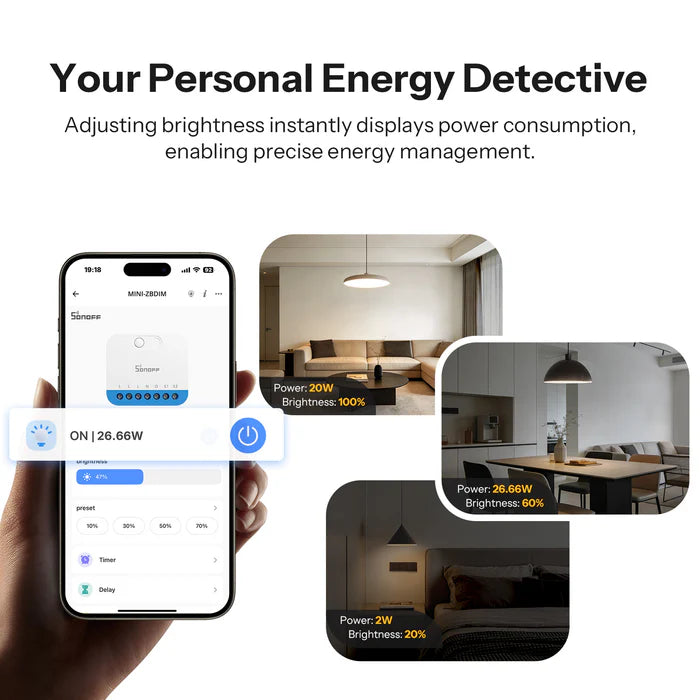

- Real-Time Power Monitoring
- Compact MINI Extreme Design

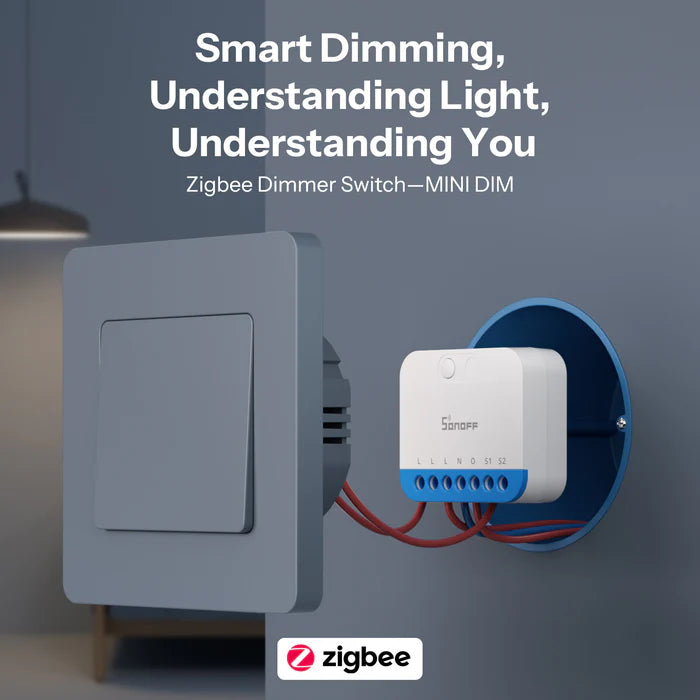

- Fits Standard Wall Switch Boxes
- Supports Dimmable LED, Halogen & Incandescent Lights
- Smart Schedules & Automation Scenes
- Voice Control with Alexa & Google Assistant
- Zigbee Mesh Router Functionality
- Soft Fade On/Off Lighting Transitions

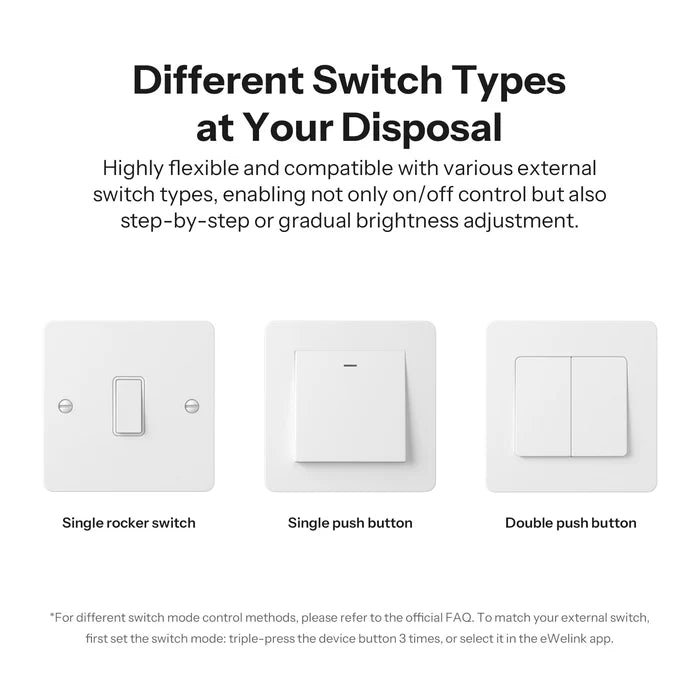

- External Wall Switch Support

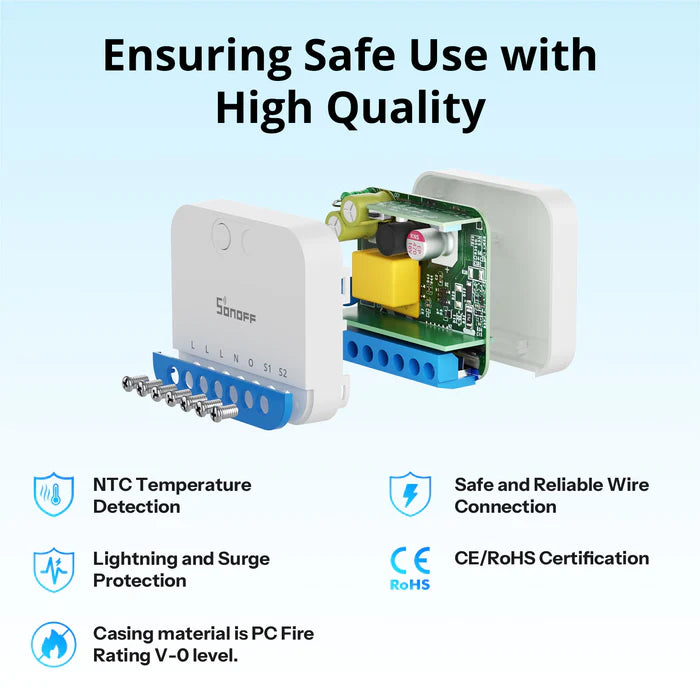

- Overheat Protection & Safe Operation

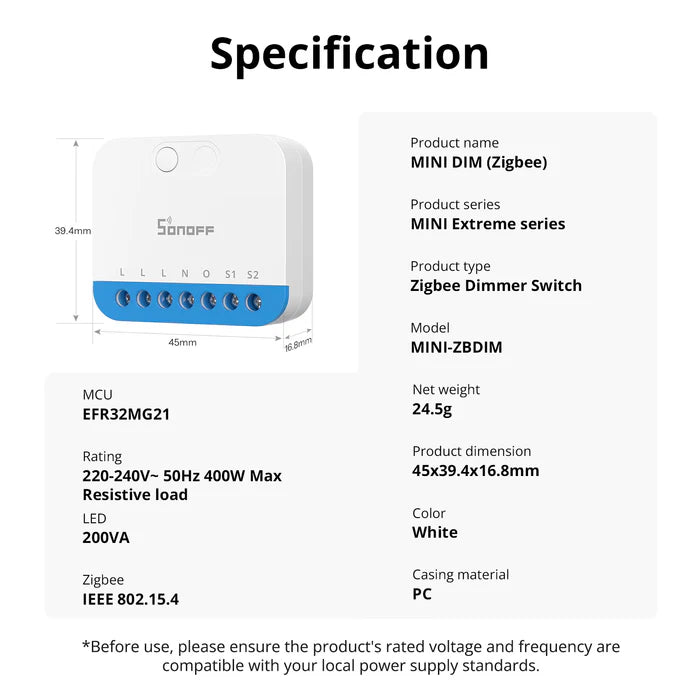

Specifications:
- Model: MINI-ZBDIM
- Wireless Protocol: Zigbee 3.0 (IEEE 802.15.4)
- Input Voltage: 220–240V AC 50Hz
- Maximum Load:
- Dimmable LED: Up to 200VA
- Incandescent/Halogen: Up to 400W
- Maximum Current: 2A
- Dimensions: 45 × 39.4 × 16.8mm
- Operating Temperature: -10°C to 40°C
- Requires Neutral Wire Installation
- Indoor Use Only
Ideal For:
- Smart home lighting automation
- Bedroom & lounge dimming
- Hotel & Airbnb smart lighting
- Office mood lighting
- Home Assistant smart homes
- Retrofit smart lighting upgrades
- Energy-efficient lighting control
Compatibility:
Compatible with:
-
SONOFF Zigbee Hubs
- Home Assistant
- Zigbee2MQTT
- SmartThings
- Amazon Alexa
- Google Home
- SONOFF NSPanel Pro
- SONOFF iHost
The MINI-ZBDIM combines professional-grade smart dimming, compact installation, and reliable Zigbee connectivity into an affordable and powerful smart lighting solution for modern automation systems.
